Advanced air impulse technology and industrial cordless solutions engineered for precision torque control, reduced vibration, and enhanced productivity. From air impulse tools to digital torque wrenches, DU-PAS delivers innovation in every application.

5
Product Categories
30+
Tool Models
20+
Years Innovation

Air Impulse Tools

  • Pistol Type-SQ. Drive
  • Pistol Type-Bit Shank
  • Straight Type-SQ. Drive
  • Straight Type-Bit Shank
  • Angle Type-SQ. Drive
  • Angle Type-Bit Shank

Industrial Air Screwdrivers

  • TDCS-D Series

Industrial Cordless Tools

  • SCEP Series
  • WRTBA Series
  • WRTCA Series
  • PW Series
  • RI Series
  • IWT Series

Geared Type Series

  • Air Impulse Geared Type Tools
  • Cordless Geared Type Tools
  • Geared Heads

Digital Torque Wrenches

  • Digital Torque Wrenches

Accessories for Du-Pas Tools

  • For Air Impulse Tools
  • For Air Shut Off Screwdrivers
  • For Cordless Tools

Air Impulse Tools

Advanced air impulse technology for precision torque control and enhanced productivity

TDW Series - Industrial Impact Tools

High-performance impact tools designed for industrial fastening applications with advanced impact mechanisms

TDW Series - Standard Models

TDW-757

TDW-757

Compact impact tool with 1/4 Hex drive

1/4" Industrial Screwdriver

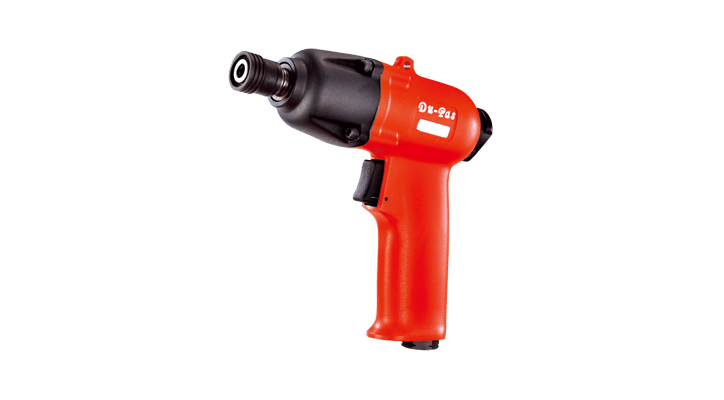

TDW-767

TDW-767

Lightweight impact tool with enhanced torque control

1/4" Industrial Screwdriver

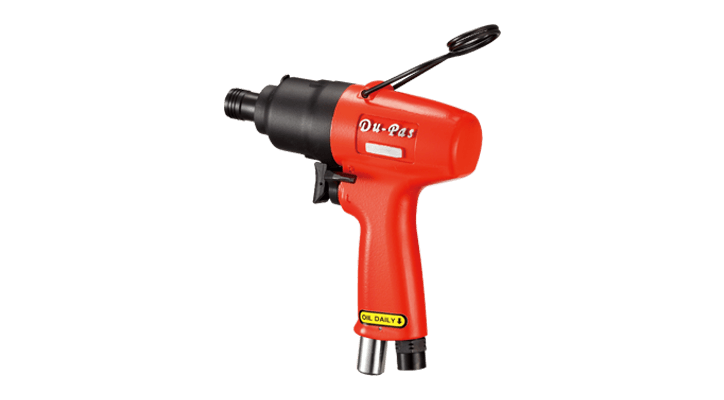

TDW-777

Ultra-compact design for tight spaces

1/4" Industrial Screwdriver

Model Drive Size (inch) Free Speed (rpm) Bolt Capacity (mm) Working Torque (Nm) Max Torque (Nm) Weight (lb) Weight (kg) Overall Length (inch) Overall Length (mm) Noise Level (dBA) Air Consumption (L/min) Air Consumption (cfm) Air Inlet (inch) Hose Size (inch) Hose Size (mm) Vibration Level (m/s²)
TDW-757 1/4 Hex 8,000 M5–M6 10–45 73 2.2 1.0 7.8 198 92.4 80 2.8 1/4 3/8 10 5.6
TDW-757S3 3/8 8,000 M6–M8 10–50 88 2.5 1.2 7.6 193 86.4 95 3.4 1/4 3/8 10 5.6
TDW-767 1/4 Hex 8,000 M5–M8 10–45 73 2.5 1.1 6.6 168 86.2 95 3.4 1/4 3/8 10 5.3
TDW-767S3 3/8 8,000 M6–M8 10–50 88 2.5 1.1 6.6 168 85.0 95 3.4 1/4 3/8 10 5.3
TDW-777 1/4 F/Hex 8,000 M6 10–40 79 2.0 0.9 6.1 155 82.0 80 2.8 1/4 3/8 10 5.0

TDW Series - Oil-Bathed Models

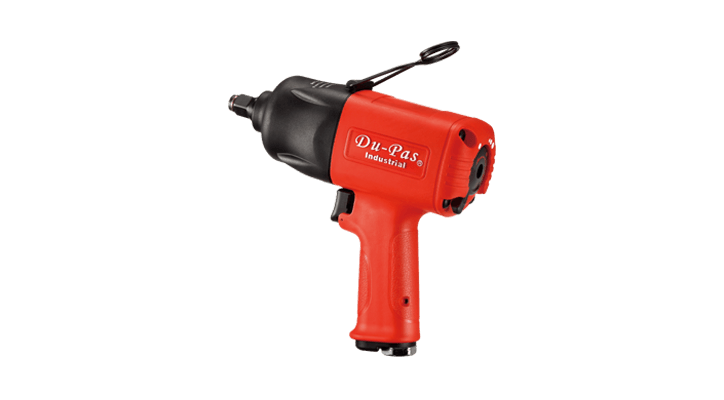

TDW-307B

TDW-307B

1/2" Oil-Bathed Impact Wrench

Industrial 1/2" Impact Wrench Super Hammer / Composite Housing

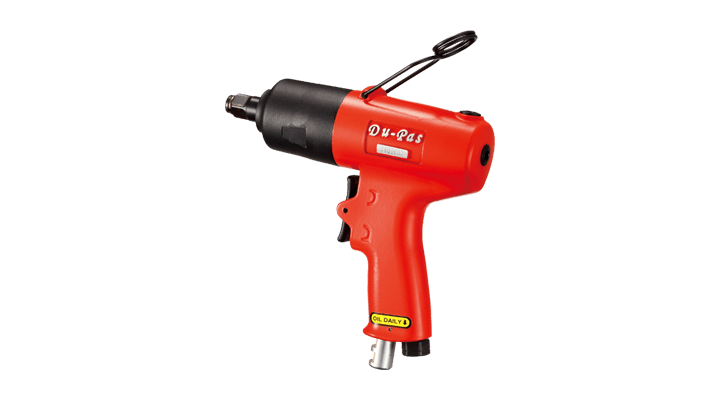

TDW-243E

TDW-243E

1/2" Oil-Bathed Impact Wrench

Industrial 1/2" Impact Wrench Twin Hammer

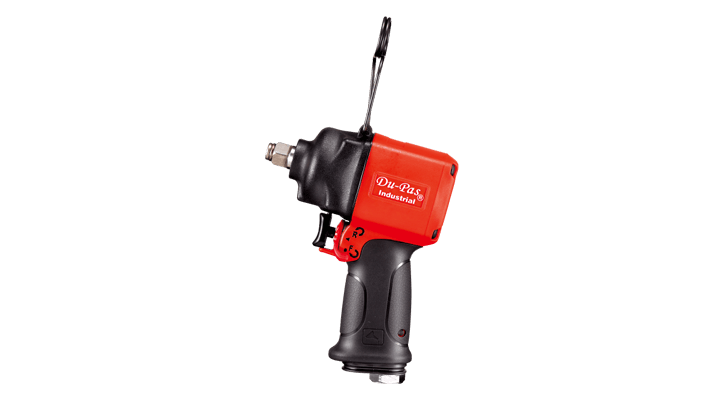

TDW-243N

TDW-243N

1/2" Oil-Bathed Impact Wrench

Industrial 1/2" Impact Wrench Twin Hammer / Composite Housing

Model Drive Size (inch) Free Speed (rpm) Bolt Capacity (mm) Working Torque (Nm) Max Torque (Nm) Weight (lb) Weight (kg) Overall Length (inch) Overall Length (mm) Noise Level (dBA) Air Consumption (L/min) Air Consumption (cfm) Air Inlet (inch) Hose Size (inch) Hose Size (mm) Vibration Level (m/s²)
TDW-307B 1/2 7,500 M12 50–260 520 2.6 1.2 7.9 201 88 113 4.0 1/4 3/8 10 7.8
TDW-243E 1/2 7,000 M12 50–240 500 2.8 1.3 7.9 201 88 113 4.0 1/4 3/8 10 7.8
TDW-243N 1/2 7,000 M12 50–220 480 3.0 1.4 8.1 206 90 113 4.0 1/4 3/8 10 7.3
TDW-3155 1" 5,000 M22 500–1500 1964 6.5 2.9 14.6 370 95 300 10.6 1/2 1/2 13 17.7
TDW-243C4 1/2 8,500 M12 50–240 500 2.6 1.2 7.8 198 88 113 4.0 1/4 3/8 10 7.3

Pistol Type - SQ.Drive

Professional square drive air impulse tools for precision fastening applications

Non-Shutoff

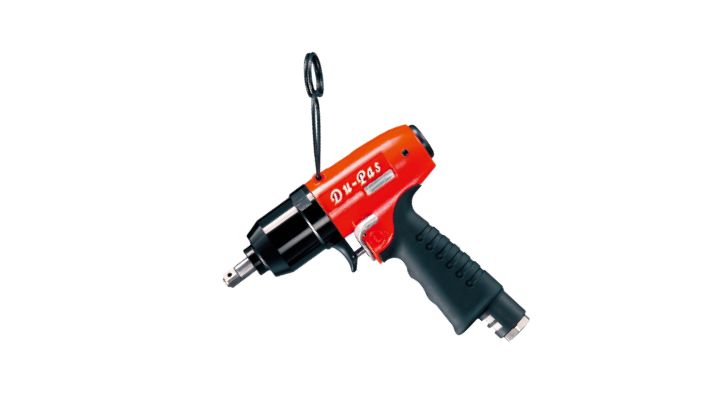

TDI-30
TDI-30X
TDI-40
Model SQ Drive Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Free Speed (rpm)
5kg/cm²		 Free Speed (rpm)
6kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDI-30 9.5 (3/8") M6 6.5–13 4.8–9.6 4300 4600 0.87 167 78 0.25 8.8 6.5
TDI-30X 9.5 (3/8") M6 6.5–13 4.8–9.6 4300 4600 0.72 136 78 0.25 8.8 6.5
TDI-40 9.5 (3/8") M6–M8 10–19 7.4–14 4300 4600 0.90 167 78 0.25 8.8 6.5
TDI-40X 9.5 (3/8") M6–M8 10–19 7.4–14 4300 4600 0.74 136 78 0.25 8.8 6.5
TDI-50 9.5 (3/8") M8 14–28 10.4–20.7 6800 7200 0.90 167 80 0.35 12.3 6.5
TDI-50X 9.5 (3/8") M8 14–28 10.4–20.7 6800 7200 0.74 136 80 0.35 12.3 6.5
TDI-60 9.5 (3/8") M8–M10 20–35 14.7–25.8 5900 6200 0.97 178 82 0.40 14.1 8
TDI-60X 9.5 (3/8") M8–M10 20–35 14.7–25.8 5900 6200 0.80 147 82 0.40 14.1 8
TDI-65 9.5 (3/8") M10 27–45 19.8–33.1 4500 4800 1.05 189 82 0.43 15.2 8
TDI-70X 9.5 (3/8") M10–M12 32–55 23.5–40.5 5200 5400 1.05 189 82 0.45 15.9 8
TDI-70 9.5 (3/8") M10–M12 34–57 25–42 6900 7200 1.33 194 82 0.45 15.9 8
TDI-80 9.5 (3/8") M10–M12 40–70 29.5–51.5 4800 5100 1.19 194 82 0.50 17.6 8
TDI-80H 12.7 (1/2") M10–M12 40–70 29.5–51.5 4800 5100 1.25 200 82 0.50 17.6 8
TDI-90 12.7 (1/2") M12 57–90 42–66.3 5000 5400 1.53 200 83 0.53 18.7 8
TDI-100 12.7 (1/2") M12–M14 75–120 55.2–88.4 5000 5300 1.85 209 84 0.53 19.4 8
TDI-130 12.7 (1/2") M14–M16 113–148 83.2–109 3300 3600 2.22 216 86 0.73 25.6 11
TDI-150 19 (3/4") M16 145–210 106.8–154.6 3500 3700 3.05 239 86 0.73 25.6 11
TDI-180 19 (3/4") M16–M18 180–255 132–188 2500 2700 3.80 264 86 0.73 25.6 11
TDI-200 19 (3/4") M18–M20 260–385 191–283 2800 3000 4.20 250.1 88 1.38 48.78 12.7

Auto Shut-Off

Model SQ Drive Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm² / 7 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDIS-30 9.5 (3/8″) M6 6.5–13 4.8–9.6 4300 4600 0.89 167 78 0.25 8.8 6.5
TDIS-40 9.5 (3/8″) M6–M8 10–19 7.4–14 4300 4600 0.92 167 78 0.25 8.8 6.5
TDIS-50 9.5 (3/8″) M8 14–28 10.4–20.7 6800 7200 0.92 167 80 0.35 12.3 6.5
TDIS-60 9.5 (3/8″) M8–M10 20–35 14.7–25.8 5900 6200 1.00 178 82 0.40 14.1 8
TDIS-65 9.5 (3/8″) M10 27–45 19.8–33.1 4500 4800 1.08 189 82 0.43 15.2 8
TDIS-70X 9.5 (3/8″) M10–M12 32–55 23.5–40.5 5200 5400 1.08 189 82 0.45 15.9 8
TDIS-70 9.5 (3/8″) M10–M12 34–57 25–42 6900 7200 1.35 194 82 0.45 15.9 8
TDIS-130 12.7 (1/2″) M14–M16 113–148 83.2–109 3300 3600 2.26 216 86 0.73 25.6 11
TDIS-150 19 (3/4″) M16 145–210 106.8–154.6 3500 3700 3.10 239 86 0.73 25.6 11
TDIS-180 19 (3/4″) M16–M18 180–255 132–188 2500 2700 3.90 264 86 0.73 25.6 11
TDIS-200 19 (3/4″) M18–M20 230–450 170–332 3000 3100 4.25 250.1 88 1.38 48.78 12.7

Pistol Type - Bit Shank

Precision bit shank air impulse tools for versatile fastening applications

Non-Shutoff

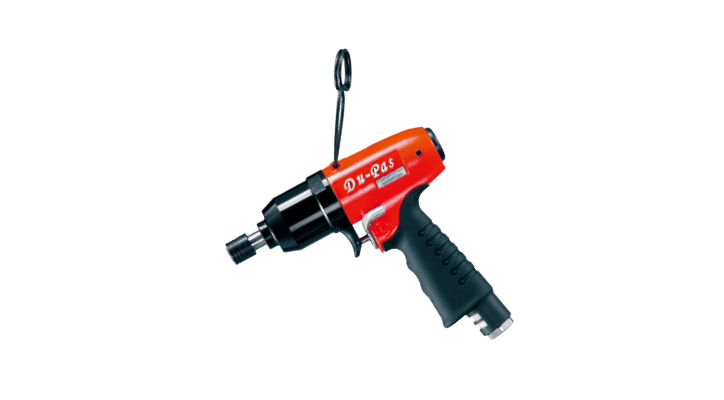

TDI-30D

TDI-30D

TDI-30DX

TDI-70D

Model Hex Size Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Bit Shank (mm) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDI-30D 6.35 (1/4″) M6 5.5 – 13 4.1 – 9.6 9 4300 4600 0.87 163 78 0.25 8.8 6.5
TDI-30DX 6.35 (1/4″) M6 5.5 – 13 4.1 – 9.6 9 4300 4600 0.72 133 78 0.25 8.8 6.5
TDI-40D 6.35 (1/4″) M6 – M8 9 – 18 6.6 – 13.3 9 4300 4600 0.90 170 78 0.25 8.8 6.5
TDI-40DX 6.35 (1/4″) M6 – M8 9 – 18 6.6 – 13.3 9 4300 4600 0.74 139 78 0.25 8.8 6.5
TDI-50D 6.35 (1/4″) M8 13 – 26 9.6 – 19.2 9 6800 7200 0.90 170 80 0.35 12.3 6.5
TDI-50DX 6.35 (1/4″) M8 13 – 26 9.6 – 19.2 9 6800 7200 0.74 139 80 0.35 12.3 6.5
TDI-60D 6.35 (1/4″) M8 18 – 30 13.3 – 22.1 9 5900 6200 0.97 181 82 0.40 14.1 8
TDI-60DX 6.35 (1/4″) M8 18 – 30 13.3 – 22.1 9 5900 6200 0.80 150 82 0.40 14.1 8
TDI-65D 6.35 (1/4″) M8 – M10 23 – 38 16.9 – 28 9 4500 4800 1.05 193 82 0.43 15.2 8
TDI-70D 6.35 (1/4″) M10 29 – 47 21.4 – 34.6 9 6900 7200 1.33 197 82 0.45 15.9 8
TDI-70DX 6.35 (1/4″) M8 – M10 26 – 44 19.1 – 32.4 9 5200 5400 1.05 192 82 0.43 15.2 8

Auto Shut-Off

Model Hex Size Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Bit Shank (mm) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDIS-30D 6.35 (1/4″) M6 5.5–13 4.1–9.6 9 4300 4600 0.89 163 78 0.25 8.8 6.5
TDIS-40D 6.35 (1/4″) M6–M8 9–18 6.6–13.3 9 4300 4600 0.92 170 78 0.25 8.8 6.5
TDIS-50D 6.35 (1/4″) M8 13–26 9.6–19.2 9 6800 7200 0.92 170 80 0.35 12.3 6.5
TDIS-60D 6.35 (1/4″) M8 18–30 13.3–22.1 9 5900 6200 1.00 181 82 0.40 14.1 8
TDIS-65D 6.35 (1/4″) M8–M10 23–38 16.9–28 9 4500 4800 1.08 192 82 0.43 15.2 8
TDIS-70D 6.35 (1/4″) M10 29–47 21.4–34.6 9 6900 7200 1.35 197 82 0.45 15.9 8
TDIS-70DX 6.35 (1/4″) M8–M10 26–44 19.1–32.4 9 5200 5400 1.08 192 82 0.43 15.2 8

Straight Type - SQ.Drive & Bit Shank

Straight-design air impulse tools for extended reach and precision fastening

Straight Type - SQ.Drive

Non-Shutoff

TDI-30S
TDI-40S
TDI-50S
Model SQ Drive Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDI-30S 9.5 (3/8″) M6 6.5 – 13 4.8 – 9.6 3900 4200 0.80 221 78 0.25 8.8 6.5
TDI-40S 9.5 (3/8″) M6 – M8 10 – 19 7.4 – 14 3900 4200 0.80 221 78 0.25 8.8 6.5
TDI-50S 9.5 (3/8″) M8 14 – 28 10.4 – 20.7 6500 6800 0.80 221 80 0.35 12.3 6.5
TDI-60S 9.5 (3/8″) M8 – M10 20 – 35 14.7 – 25.8 5700 6000 0.86 231 80 0.40 14.1 8
TDI-70S 9.5 (3/8″) M10 28 – 47 20.6 – 34.6 4700 5000 0.97 244 80 0.40 14.1 8
TDI-80S 9.5 (3/8″) M10 – M12 40 – 70 29.5 – 51.5 5800 6100 1.15 248 82 0.50 17.6 8
TDI-80SH 12.7 (1/2″) M10 – M12 40 – 70 29.5 – 51.5 5800 6100 1.21 251 82 0.50 17.6 8

Auto Shut-Off

Model SQ Drive Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDIS-30S 9.5 (3/8″) M6 6.5 – 13 4.8 – 9.6 3900 4200 0.8 221 78 0.25 8.8 6.5
TDIS-40S 9.5 (3/8″) M6 – M8 10 – 19 7.4 – 14 3900 4200 0.8 221 78 0.25 8.8 6.5
TDIS-50S 9.5 (3/8″) M8 14 – 28 10.4 – 20.7 6500 6800 0.8 221 80 0.35 12.3 6.5
TDIS-60S 9.5 (3/8″) M8 – M10 20 – 35 14.7 – 25.8 5700 6000 0.86 231 80 0.4 14.1 8
TDIS-70S 9.5 (3/8″) M10 28 – 47 20.6 – 34.6 4700 5000 0.97 244 80 0.4 14.1 8
TDIS-80S 9.5 (3/8″) M10 – M12 40 – 68 29.5 – 50.1 5800 6100 1.15 248 82 0.5 17.6 8
TDIS-80SH 12.7 (1/2″) M10 – M12 40 – 70 29.5 – 51.5 5800 6100 1.21 251 82 0.5 17.6 8

Straight Type - Bit Shank

Non-Shutoff

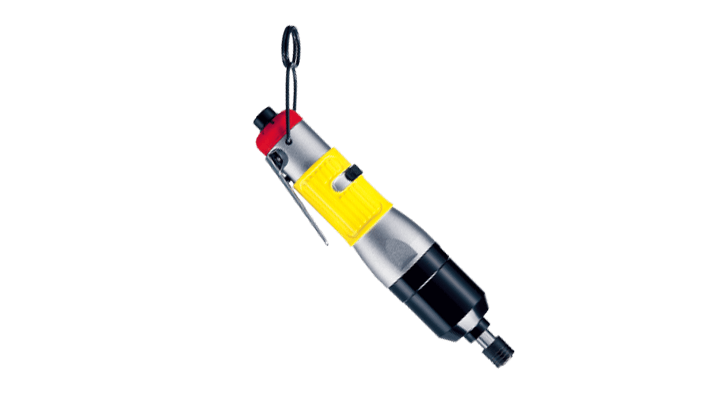

TDI-30SD
TDI-40SD
TDI-50SD
Model Hex Size Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Bit Shank (mm) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDI-30SD 6.35 (1/4″) M6 5.5 – 12 4.1 – 8.9 9 3900 4200 0.77 219 78 0.25 8.8 6.5
TDI-40SD 6.35 (1/4″) M6 – M8 9 – 17 6.6 – 12.5 9 3900 4200 0.80 224 78 0.25 8.8 6.5
TDI-50SD 6.35 (1/4″) M8 13 – 26 9.6 – 19.2 9 6500 6800 0.80 224 80 0.35 12.3 6.5
TDI-60SD 6.35 (1/4″) M8 18 – 30 13.3 – 22.1 9 5700 6000 0.86 235 80 0.40 14.1 8
TDI-70SD 6.35 (1/4″) M8 – M10 25 – 40 18.4 – 29.4 9 4700 5000 0.97 247 80 0.40 14.1 8

Auto Shut-Off

Model Hex Size Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Bit Shank (mm) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDIS-30SD 6.35 (1/4″) M6 5.5 – 12 4.1 – 8.9 9 3900 4200 0.77 219 78 0.25 8.8 6.5
TDIS-40SD 6.35 (1/4″) M6 – M8 9 – 17 6.6 – 12.5 9 3900 4200 0.80 224 78 0.25 8.8 6.5
TDIS-50SD 6.35 (1/4″) M8 13 – 26 9.6 – 19.2 9 6500 6800 0.80 224 80 0.35 12.3 6.5
TDIS-60SD 6.35 (1/4″) M8 18 – 30 13.3 – 22.1 9 5700 6000 0.86 235 80 0.40 14.1 8
TDIS-70SD 6.35 (1/4″) M8 – M10 25 – 40 18.4 – 29.4 9 4700 5000 0.97 247 80 0.40 14.1 8

Angle Type - SQ.Drive & Bit Shank

Angle-design air impulse tools for hard-to-reach areas and confined spaces

Angle Type - SQ.Drive

Non-Shutoff

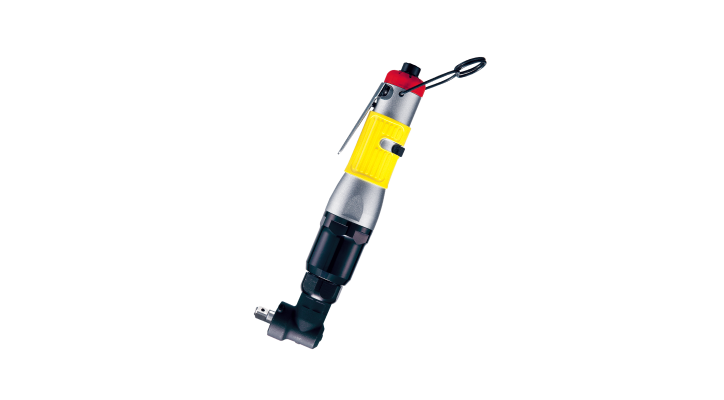

TDI-50R
TDI-60R
TDI-70R
Model SQ Drive Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDI-50R 9.5 (3/8″) M6 – M8 9.5 – 17 7 – 12.5 4000 4300 1.2 253 80 0.32 11.3 6.5
TDI-60R 9.5 (3/8″) M8 14 – 24 10.3 – 17.7 4400 4700 1.3 264 80 0.40 14.1 8
TDI-70R 9.5 (3/8″) M8 – M10 20 – 31 14.7 – 22.8 4200 4500 1.4 272 80 0.40 14.1 8
TDI-70RH 9.5 (3/8″) M10 30 – 50 22.1 – 36.8 1800 2000 1.6 281 82 0.40 14.1 8
TDI-70RH 12.7 (1/2″) M10 – M12 40 – 60 29.5 – 44.2 2000 2200 1.6 281 82 0.40 14.1 8
TDI-80RH 12.7 (1/2″) M10 – M12 50 – 70 36.8 – 51.5 2600 2800 1.7 281 82 0.45 15.9 8

Auto Shut-Off

Model SQ Drive Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDIS-50R 9.5 (3/8″) M6 – M8 9.5 – 17 7 – 12.5 4000 4300 1.2 253 80 0.32 11.3 6.5
TDIS-60R 9.5 (3/8″) M8 14 – 24 10.3 – 17.7 4400 4700 1.3 264 80 0.40 14.1 8
TDIS-70R 9.5 (3/8″) M8 – M10 20 – 31 14.7 – 22.8 4200 4500 1.4 272 80 0.40 14.1 8
TDIS-70RG 9.5 (3/8″) M10 30 – 50 22.1 – 36.8 1800 2000 1.6 281 82 0.40 14.1 8
TDIS-70RH 12.7 (1/2″) M10 – M12 40 – 60 29.5 – 44.2 2000 2200 1.6 281 82 0.40 14.1 8
TDIS-80RH 12.7 (1/2″) M10 – M12 50 – 70 36.8 – 51.5 2600 2800 1.7 281 82 0.45 15.9 8

Angle Type - Bit Shank

Non-Shutoff

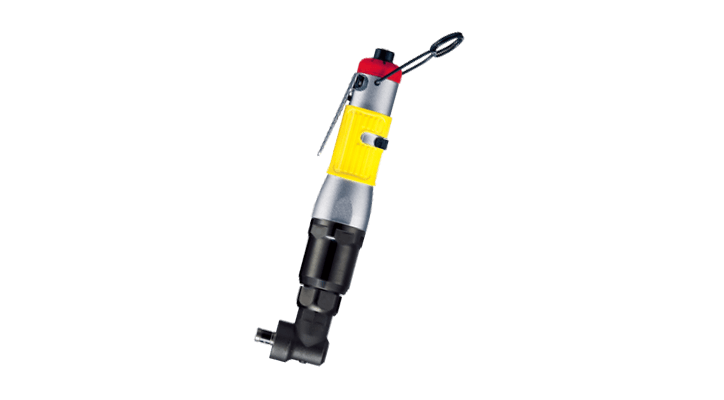

TDI-50RD
TDI-60RD
TDI-70RD
Model Hex Size Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Bit Shank (mm) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDI-50RD 6.35 (1/4″) M6 – M8 8.5 – 16 6.3 – 11.8 9 4000 4300 1.2 253 80 0.32 11.3 6.5
TDI-60RD 6.35 (1/4″) M8 12.5 – 22 9.2 – 16.2 9 4400 4700 1.3 264 80 0.40 14.1 8
TDI-70RD 6.35 (1/4″) M8 18 – 29 13.3 – 21.4 9 4200 4500 1.4 272 80 0.40 14.1 8

Auto Shut-Off

Model Hex Size Bolt Capacity (mm) Torque Range (Nm) Torque Range (ft·lb) Bit Shank (mm) Free Speed (rpm)
5 kg/cm²		 Free Speed (rpm)
6 kg/cm²		 Weight (kg) Length (mm) Noise Level (dB(A)) Average Air Consumption (m³/min) Average Air Consumption (ft³/min) Hose Size (mm)
TDIS-50RD 6.35 (1/4″) M6 – M8 8.5 – 16 6.3 – 11.8 9 4000 4300 1.2 253 80 0.32 11.3 6.5
TDIS-60RD 6.35 (1/4″) M8 12.5 – 22 9.2 – 16.2 9 4400 4700 1.3 264 80 0.40 14.1 8
TDIS-70RD 6.35 (1/4″) M8 18 – 29 13.3 – 21.4 9 4200 4500 1.4 272 80 0.40 14.1 8

Air Shut-Off Screwdrivers

Precision air screwdrivers engineered for industrial assembly applications with advanced torque control and auto shut-off technology

TDCS-D Series

Pistol Type

TDCS-D08-1500

TDCS-D08-1500

1/4" Hex Pistol Type Air Screwdriver

TDCS-D10-1500

TDCS-D10-900

1/4" Hex Pistol Type Air Screwdriver

Model Drive Size Screw Size Torque Range (Nm) Torque Range (in-lb) Free Speed (rpm) Weight (kg) Weight (lb) Air Inlet (inch) Noise Level (dB(A)) Air Consumption (L/s) Air Consumption (cfm)
TDCS-D08-1500 1/4″ Hex M2 0.4–0.7 3.5–6.2 1500 0.70 1.54 1/4″ 72 3.5 7
TDCS-D08-1100 1/4″ Hex M2–M3 0.7–2.3 6.2–17.7 1100 0.70 1.54 1/4″ 72 3.5 7
TDCS-D10-900 1/4″ Hex M3 1.3–4.3 11.5–38 900 0.93 2.05 1/4″ 75 3.5 7
TDCS-D20-2000 1/4″ Hex M3–M4 2–6 17.7–53 2000 1.07 2.35 1/4″ 75 3.5 7
TDCS-D20-1100 1/4″ Hex M3–M5 4–9 35–79 1100 1.22 2.68 1/4″ 75 5.5 11
TDCS-D30-500 1/4″ Hex M4–M6 4–11 35–97 500 1.22 2.68 1/4″ 75 5.5 11
TDCS-D50-380 1/4″ Hex M5–M8 9–18 80–159 380 1.22 2.68 1/4″ 80 7 15

Lever Start

TDCS-D08SL-1500

TDCS-D08SL-1500

1/4" Hex Lever Start Air Screwdriver

TDCS-D10SL-1500

TDCS-D10SL-1500

1/4" Hex Lever Start Air Screwdriver

TDCS-D20SL-2000

TDCS-D20SL-2000

1/4" Hex Lever Start Air Screwdriver

Model Drive Size Screw Size (mm) Torque Range (Nm) Torque Range (in-lb) Free Speed (rpm) Weight (kg) Weight (lb) Air Inlet (inch) Noise Level (dB(A)) Air Consumption (L/s) Air Consumption (cfm)
TDCS-D08SL-1500 1/4″ Hex M2 0.4 – 0.7 3.5 – 6.2 1500 0.41 0.90 1/8″ 73 3.5 7
TDCS-D08SL-1100 1/4″ Hex M2 – M3 0.7 – 1.3 6.2 – 11.5 1100 0.41 0.90 1/8″ 73 3.5 7
TDCS-D10SL-1500 1/4″ Hex M2 – M3 0.7 – 1.3 6.2 – 11.5 1500 0.63 1.39 1/8″ 75 3.5 7
TDCS-D10SL-900 1/4″ Hex M3 0.8 – 3.5 7.1 – 31 900 0.63 1.39 1/8″ 75 3.5 7
TDCS-D15SL-1500 1/4″ Hex M3 – M4 1.3 – 4.5 11.5 – 40 1500 0.71 1.56 1/8″ 78 4.5 9
TDCS-D15SL-1000 1/4″ Hex M3 – M4 1.3 – 4.5 11.5 – 40 1000 0.71 1.56 1/8″ 78 4.5 9
TDCS-D15SL-700 1/4″ Hex M3 – M5 1.8 – 5.5 16 – 49 700 0.77 1.71 1/8″ 78 4.5 9
TDCS-D20SL-3500 1/4″ Hex M3 – M5 2.5 – 8.5 22 – 75 3500 0.87 1.91 1/4″ 78 4.5 9
TDCS-D20SL-2000 1/4″ Hex M3 – M5 2.5 – 8.5 22 – 75 2000 0.87 1.91 1/4″ 78 4.5 9
TDCS-D20SL-1000 1/4″ Hex M3 – M5 4 – 9 35 – 79 1000 1.01 2.22 1/4″ 78 5.5 12
TDCS-D25SL-700 1/4″ Hex M3 – M5 4 – 9 35 – 79 700 1.01 2.22 1/4″ 78 5.5 12
TDCS-D30SL-3500 1/4″ Hex M3 – M5 4 – 9 35 – 79 3500 0.87 1.91 1/4″ 78 4.5 9
TDCS-D30SL-2000 1/4″ Hex M4 – M6 4 – 11 35 – 97 2000 1.22 2.68 1/4″ 78 5.5 12
TDCS-D30SL-1000 1/4″ Hex M4 – M6 4 – 11 35 – 97 1000 1.22 2.68 1/4″ 78 5.5 12
TDCS-D30SL-500 1/4″ Hex M5 – M6 7 – 14 62 – 124 500 1.34 2.95 1/4″ 83 7 15
TDCS-D40SL-700 1/4″ Hex M5 – M6 7 – 14 62 – 124 700 1.34 2.95 1/4″ 83 7 15
TDCS-D50SL-380 1/4″ Hex M5 – M8 9 – 18 80 – 159 380 1.34 2.95 1/4″ 83 7 15

Push Start

TDCS-D08S-1500

TDCS-D08S-1500

1/4" Hex Push Start Air Screwdriver

TDCS-D10S-1600

TDCS-D10S-1600

1/4" Hex Push Start Air Screwdriver

TDCS-D20S-2000

TDCS-D20S-2000

1/4" Hex Push Start Air Screwdriver

Model Drive Size Screw Size (mm) Torque Range (Nm) Torque Range (in-lb) Free Speed (rpm) Weight (kg) Weight (lb) Air Inlet (inch) Noise Level (dB(A)) Air Consumption (L/s) Air Consumption (cfm)
TDCS-D08S-1500 1/4″ Hex M2 0.4 – 0.7 3.5 – 6.2 1500 0.35 0.77 1/8″ 73 3.5 7
TDCS-D08S-1100 1/4″ Hex M2 0.4 – 1 3.5 – 8.8 1100 0.35 0.77 1/8″ 73 3.5 7
TDCS-D10S-1600 1/4″ Hex M2 – M3 0.7 – 1.3 6.2 – 11.5 1600 0.60 1.32 1/8″ 75 5.5 12
TDCS-D10S-900 1/4″ Hex M3 0.7 – 2.3 6.2 – 17.7 900 0.60 1.32 1/8″ 75 5.5 12
TDCS-D15S-2000 1/4″ Hex M2 – M3 0.5 – 2.5 4.4 – 22 2000 0.66 1.45 1/8″ 79 4.5 10
TDCS-D15S-1300 1/4″ Hex M3 – M4 0.8 – 3.5 7.1 – 31 1300 0.66 1.45 1/8″ 79 4.5 10
TDCS-D15S-1000 1/4″ Hex M3 – M4 0.8 – 4.5 7.1 – 40 1000 0.66 1.45 1/8″ 79 4.5 10
TDCS-D15S-750 1/4″ Hex M3 – M5 0.8 – 5.5 7.1 – 44 750 0.66 1.45 1/8″ 79 4.5 10
TDCS-D20S-3500 1/4″ Hex M3 0.7 – 2.3 6.2 – 20 3500 0.82 1.80 1/4″ 78 7.5 16
TDCS-D20S-3000 1/4″ Hex M3 – M4 0.8 – 3.3 7.1 – 27 3000 0.82 1.80 1/4″ 78 7.5 16
TDCS-D20S-2000 1/4″ Hex M3 – M4 0.8 – 4.5 7.1 – 40 2000 0.82 1.80 1/4″ 78 7.5 16
TDCS-D20S-1100 1/4″ Hex M3 – M5 1.2 – 6 10.6 – 53 1100 0.82 1.80 1/4″ 78 7.5 16
TDCS-D30S-700 1/4″ Hex M4 – M5 4 – 9 35 – 80 700 0.96 2.11 1/4″ 78 7.5 16
TDCS-D30S-500 1/4″ Hex M4 – M6 4 – 11 35 – 97 500 0.96 2.11 1/4″ 78 7.5 16
TDCS-D40S-550 1/4″ Hex M5 – M6 7 – 14 62 – 124 550 1.26 2.77 1/4″ 82 9.5 20
TDCS-D50S-380 1/4″ Hex M6 – M8 9 – 18 80 – 159 380 1.26 2.77 1/4″ 82 9.5 20

Angle Type

TDCS-D08RS-1500-C

TDCS-D08RS-1500-C

1/4" Hex Angle Type Air Screwdriver

TDCS-D15RX-1300-C

TDCS-D15RX-1300-C

1/4" Sq Angle Type Air Screwdriver

TDCS-D20RX-2200-C

TDCS-D20RX-2200-C

3/8" Sq Angle Type Air Screwdriver

Model Drive Size Screw Size (mm) Torque Range (Nm) Torque Range (in-lb) Free Speed (rpm) Weight (kg) Weight (lb) Air Inlet (inch) Noise Level (dB(A)) Air Consumption (L/s) Air Consumption (cfm)
TDCS-D08S-1500 1/4″ Hex M2 0.4 – 0.7 3.5 – 6.2 1500 0.35 0.77 1/8″ 73 3.5 7
TDCS-D08S-1100 1/4″ Hex M2 0.4 – 1 3.5 – 8.8 1100 0.35 0.77 1/8″ 73 3.5 7
TDCS-D10S-1600 1/4″ Hex M2-M3 0.7 – 1.3 6.2 – 11.5 1600 0.60 1.32 1/8″ 75 5.5 12
TDCS-D10S-900 1/4″ Hex M3 0.7 – 2 6.2 – 17.7 900 0.60 1.32 1/8″ 75 5.5 12
TDCS-D15S-2000 1/4″ Hex M2-M3 0.5 – 2.5 4.4 – 22 2000 0.66 1.45 1/8″ 79 4.5 10
TDCS-D15S-1300 1/4″ Hex M3-M4 0.8 – 3.5 7.1 – 31 1300 0.66 1.45 1/8″ 79 4.5 10
TDCS-D15S-1000 1/4″ Hex M3-M4 0.8 – 4.5 7.1 – 40 1000 0.66 1.45 1/8″ 79 4.5 10
TDCS-D15S-750 1/4″ Hex M3-M5 0.8 – 5 7.1 – 44 750 0.66 1.45 1/8″ 79 4.5 10
TDCS-D20S-3500 1/4″ Hex M3 0.7 – 2.3 6.2 – 20 3500 0.82 1.80 1/4″ 78 7.5 16
TDCS-D20S-3000 1/4″ Hex M3-M4 0.8 – 3 7.1 – 27 3000 0.82 1.80 1/4″ 78 7.5 16
TDCS-D20S-2000 1/4″ Hex M3-M4 0.8 – 4.5 7.1 – 40 2000 0.82 1.80 1/4″ 78 7.5 16
TDCS-D20S-1100 1/4″ Hex M3-M5 1.2 – 6 10.6 – 53 1100 0.82 1.80 1/4″ 78 7.5 16
TDCS-D30S-700 1/4″ Hex M4-M5 4 – 9 35 – 80 700 0.96 2.11 1/4″ 78 7.5 16
TDCS-D30S-500 1/4″ Hex M4-M6 4 – 11 35 – 97 500 0.96 2.11 1/4″ 78 7.5 16
TDCS-D40S-550 1/4″ Hex M5-M6 7 – 14 62 – 124 550 1.26 2.77 1/4″ 82 9.5 20
TDCS-D50S-380 1/4″ Hex M6-M8 9 – 18 80 – 159 380 1.26 2.77 1/4″ 82 9.5 20
TDCS-D08RS-1500-C 1/4″ Hex M2 0.4 – 0.7 3.5 – 6.2 1500 0.56 1.23 1/8″ 73 3.5 7
TDCS-D08RS-1100-C 1/4″ Hex M2 0.4 – 1 3.5 – 8.8 1100 0.56 1.23 1/8″ 73 3.5 7
TDCS-D10RS-1600-C 1/4″ Hex M2-M3 0.7 – 1.3 6.2 – 11.5 1600 0.80 1.76 1/8″ 75 5.5 12
TDCS-D10RS-900-C 1/4″ Hex M3 0.7 – 2.7 6.2 – 17.7 900 0.80 1.76 1/8″ 75 5.5 12
TDCS-D15RX-1300-C 1/4″ Sq M3-M4 1 – 3.5 8.8 – 31 1300 0.98 2.16 1/8″ 81 4.5 10
TDCS-D15RX-800-C 1/4″ Sq M3-M5 1.4 – 4.5 12.4 – 40 800 0.98 2.16 1/8″ 81 4.5 10
TDCS-D15RW-800-C 1/4″ Hex M3-M5 1.4 – 4.5 12.4 – 40 800 0.98 2.16 1/8″ 81 4.5 10
TDCS-D15RX-650-C 1/4″ Sq M4-M5 1.4 – 6.5 12.4 – 53 650 0.98 2.16 1/8″ 81 4.5 10
TDCS-D15RW-500-C 1/4″ Hex M3-M5 1.4 – 7 12.4 – 62 500 0.98 2.16 1/8″ 81 4.5 10
TDCS-D20RX-2200-C 3/8″ Sq M3-M4 1.2 – 3 10.6 – 27 2200 1.14 2.51 1/4″ 78 7 15
TDCS-D20RW-2200-C 1/4″ Hex M3-M4 1.4 – 4 12.4 – 35 2200 1.14 2.51 1/4″ 78 7 15
TDCS-D20RX-1900-C 3/8″ Sq M3-M5 1.4 – 4 12.4 – 35 1900 1.14 2.51 1/4″ 78 7 15
TDCS-D20RW-1900-C 1/4″ Hex M3-M5 1.4 – 4 12.4 – 35 1900 1.14 2.51 1/4″ 78 7 15
TDCS-D20RX-1300-C 3/8″ Sq M3-M5 1.4 – 6.5 12.4 – 58 1300 1.14 2.51 1/4″ 78 7 15
TDCS-D20RW-1300-C 1/4″ Hex M3-M5 1.4 – 6.5 12.4 – 58 1300 1.14 2.51 1/4″ 78 7 15
TDCS-D30RX-700-C 3/8″ Sq M4-M5 2 – 8 17.7 – 71 700 1.14 2.51 1/4″ 78 7 15
TDCS-D30RW-700-C 1/4″ Hex M4-M5 2 – 8 17.7 – 71 700 1.14 2.51 1/4″ 78 7 15
TDCS-D30RX-480-C 3/8″ Sq M5-M6 6 – 15 53 – 106 480 1.28 2.82 1/4″ 78 7 15
TDCS-D30RW-480-C 1/4″ Hex M5-M6 6 – 15 53 – 106 480 1.28 2.82 1/4″ 78 7 15
TDCS-D30RX-320-C 3/8″ Sq M6 6 – 15 53 – 133 320 1.28 2.82 1/4″ 78 7 15
TDCS-D30RW-320-C 1/4″ Hex M6 6 – 15 53 – 133 320 1.28 2.82 1/4″ 78 7 15
TDCS-D50RX-270-C 3/8″ Sq M8 10 – 18 89 – 160 400 1.75 3.85 1/4″ 83 8 17
TDCS-D50RW-270-C 1/4″ Hex M8 14 – 24 124 – 212 270 1.75 3.85 1/4″ 83 8 17
TDCS-D60RY-120-C 3/8″ Sq M8-M10 24 – 45 212 – 400 120 2.03 4.47 1/4″ 83 8 17
TDCS-D70RY-100-C 3/8″ Sq M10-M12 35 – 60 310 – 530 100 2.03 4.47 1/4″ 83 8 17

Industrial Cordless Tools

Advanced cordless solutions for precision assembly with transducerized torque control technology and brushless motor systems

NPA Series | Pistol Type

Cordless Transducerized Tools

NPA-08H2

NPA-08H2

20V 1/4" Hex Cordless Transducerized Tool

Model No. Voltage (V) Drive Size Screw Size (mm) Torque Range (Nm) Torque Range (ft·lb) Free Speed (rpm) Noise Level (dB(A)) Weight (kg) Weight (lb)
NPA-08H2 20 1/4″ Hex M4–M5 3–8 2.2–5.9 220–1100 <75 1.01 2.23
NPA-08S3 20 3/8″ Sq M4–M6 4–12 3.0–8.9 150–750 <75 1.01 2.23
NPA-12H2 20 1/4″ Hex M4–M6 4–12 3.0–8.9 150–750 <75 1.01 2.23
NPA-12S3 20 3/8″ Sq M5–M6 5–16 3.7–11.8 100–500 <75 1.01 2.23
NPA-16H2 20 1/4″ Hex M5–M6 5–16 3.7–11.8 100–500 <75 1.01 2.23
NPA-16S3 20 3/8″ Sq M5–M6 5–16 3.7–11.8 100–500 <75 1.01 2.23

WRTBA Series | Brushless Motor

Cordless Shut-Off Angle Wrenches/Screwdrivers

WRTBA-10

WRTBA-10

20V 1/4" Hex Cordless Shut-Off Angle Wrench

Model Voltage (V) Drive Size Screw Size (mm) Weight (kg) Weight (lb) Vibration Value (m/s²) Noise Level (dB(A)) Free Speed (rpm) Torque Range (Nm) — Hard Joint Torque Range (Nm) — Soft Joint
WRTBA-10 20 1/4″ Hex M4–M5 1.5 3.3 <2.5 <75 400–1000 3–12 3–10
WRTBA-10S2 20 1/4″ Sq M4–M5 1.5 3.3 <2.5 <75 400–1000 3–12 3–10
WRTBA-10S3 20 3/8″ Sq M4–M5 1.5 3.3 <2.5 <75 400–1000 3–12 3–10
WRTBA-16 20 1/4″ Hex M5–M6 1.5 3.3 <2.5 <75 300–600 5–18 5–16
WRTBA-16S2 20 1/4″ Sq M5–M6 1.5 3.3 <2.5 <75 300–600 5–18 5–16
WRTBA-16S3 20 3/8″ Sq M5–M6 1.5 3.3 <2.5 <75 300–600 5–18 5–16
WRTBA-30S3 20 3/8″ Sq M6–M8 1.5 3.3 <2.5 <75 250–450 8–30 8–22
WRTBA-35S3 20 3/8″ Sq M6–M8 1.6 3.52 <2.5 <75 200–350 10–35 10–30
WRTBA-5053 20 3/8″ Sq M6–M10 2.0 4.4 <2.5 <75 200 22–50 22–50
WRTBA-5054 20 1/2″ Sq M6–M10 2.0 4.4 <2.5 <75 200 22–50 22–50
WRTBA-6053 20 3/8″ Sq M8–M12 2.0 4.4 <2.5 <75 160 25–60 25–60
WRTBA-6054 20 1/2″ Sq M8–M12 2.0 4.4 <2.5 <75 160 25–60 25–60
WRTBA-7053 20 3/8″ Sq M8–M12 2.5 5.5 <2.5 <75 160 30–70 30–70
WRTBA-7054 20 1/2″ Sq M8–M12 2.5 5.5 <2.5 <75 160 30–70 30–70
WRTBA-9054 20 1/2″ Sq M10–M14 2.5 5.5 <2.5 <75 90 40–90 40–90

WRTCA Series | Brushless Motor

Cordless Shut-Off Angle Wrenches/Screwdrivers

Model Voltage (V) Drive Size Screw Size (mm) Weight (kg) Weight (lb) Vibration Value (m/s²) Noise Level (dB(A)) Free Speed (rpm) Torque Range (Nm) — Hard Joint Torque Range (Nm) — Soft Joint
WRTCA-07H2 20 1/4″ Hex M3–M5 1.2 2.6 <2.5 <75 400–800 1.8–7 1.8–7
WRTCA-07S2 20 3/8″ Sq M3–M5 1.2 2.6 <2.5 <75 400–800 1.8–7 1.8–7
WRTCA-14H2 20 1/4″ Hex M4–M6 1.2 2.6 <2.5 <75 200–500 3.5–14 3.5–14
WRTCA-14S2 20 3/8″ Sq M4–M6 1.2 2.6 <2.5 <75 200–500 3.5–14 3.5–14
WRTCA-15S3 20 3/8″ Sq M5–M8 1.68 3.7 <2.5 <75 200 8–30 8–13
WRTCA-30S3 20 3/8″ Sq M5–M8 1.68 3.7 <2.5 <75 200 8–30 8–13

IWT Series | Brushless Motor

Cordless Shut-Off Impact Wrenches

IWT-025H2

IWT-025H2

20V 1/4" Hex Cordless Shut-Off Impact Wrench

Model Voltage (V) Drive Size Screw Size (mm) Working Torque Range (Nm) Working Torque Range (ft·lb) Max Torque (Nm) (Non Shut-off) Free Speed (rpm) Weight (kg) Weight (lb) Noise Level (dB(A))
IWT-025H2 20 1/4″ Hex M3–M5, M6–M8 3–25 2–18 40 2400 1.0 2.2 <75
IWT-032S3 20 3/8″ Sq M6–M8 6–32 4–24 90 2400 1.1 2.4 <75
IWT-055S3 20 3/8″ Sq M8–M10 15–55 11–41 120 2400 1.1 2.4 <75
IWT-055S4 20 1/2″ Sq M8–M10 15–55 11–41 120 2400 1.1 2.4 <75
IWT-100S4 20 1/2″ Sq M10–M12 25–100 18–74 180 2400 1.3 2.9 <75
IWT-120S4 20 1/2″ Sq M12–M14 30–120 22–89 210 2400 1.3 2.9 <75

Ready to Enhance Your Operations with DU-PAS Tools?

Contact our experts for personalized recommendations and competitive pricing on DU-PAS professional tools.

Get Quote
