Smart screwdrivers and intelligent torque control systems engineered for precision assembly, quality control, and Industry 4.0 manufacturing. From IoT-enabled smart products to high-precision torque meters, KILEWS delivers innovation in intelligent fastening solutions.

6
Product Categories
45+
Smart Tool Models
25+
Years Innovation

BSD Brush Series

  • AC-TYPE (Non Shut-Off) Screwdriver
  • DC-TYPE (Non Shut-Off) Screwdriver
  • DC-TYPE Shut Off Screwdriver
  • Counter for Brush Type

BSD Brushless Series

  • BSD Brushless Screwdriver
  • Screw Counter for Brushless

High Torque Series

  • Straight Type Push/Trigger
  • Angled Type
  • Pistol Type
  • Power Torque

Smart Tools Series

  • Smart Screwdrivers
  • Torque Display KL-CTDS
  • Screw Counters
BSD Brush Series / AC-TYPE (Non Shut-Off)

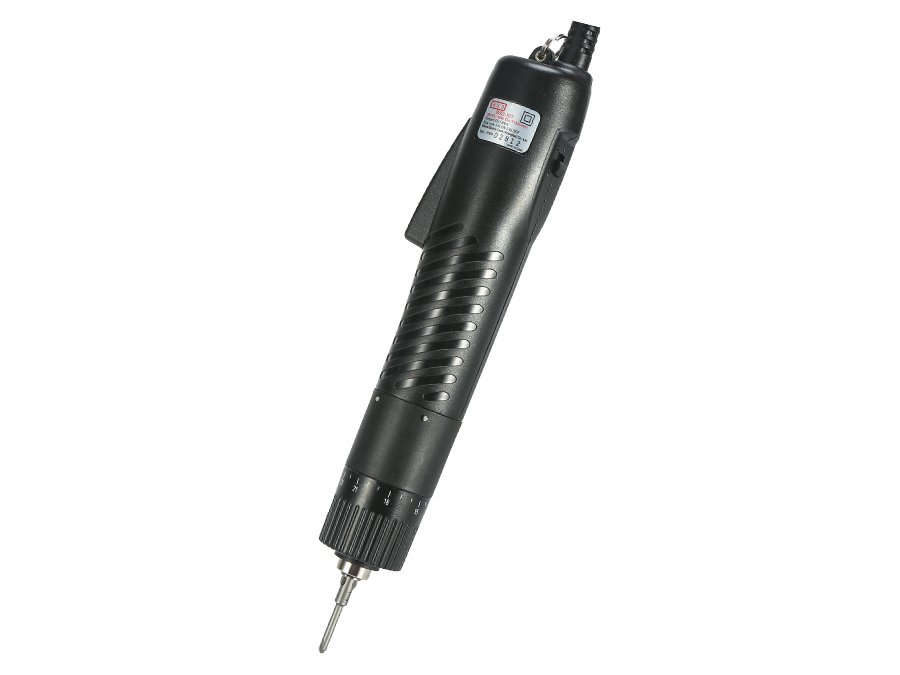

AC-TYPE (Non Shut-Off) Screwdriver Series

Model Input Voltage Torque (N·m) Power Speed (rpm) Screw Size (mm) Starting Method Power Controller Bit Type ESD CE RoHS
TKS-1300LS AC (unclear in photo) 0.05–0.69 48W 1000 1.4–2.6 Trigger — B, C, D
TKS-1500LS AC (unclear in photo) 0.19–1.47 48W 1000 2.0–4.0 Trigger / Start (unclear) — B, C, D
TKS-2500LS AC 220–240V 0.29–2.45 50W 1000 2.6–4.0 Start — A, B
TKS-3500LS AC (unclear in photo) 0.49–3.43 50W 1000 3.0–5.0 Start — A, B
TKS-4500LS AC (unclear in photo) 0.98–4.41 50W 500 4.0–6.0 Start — A, B
BSD Brush Series / DC-TYPE (Non Shut-Off) with Tool Box

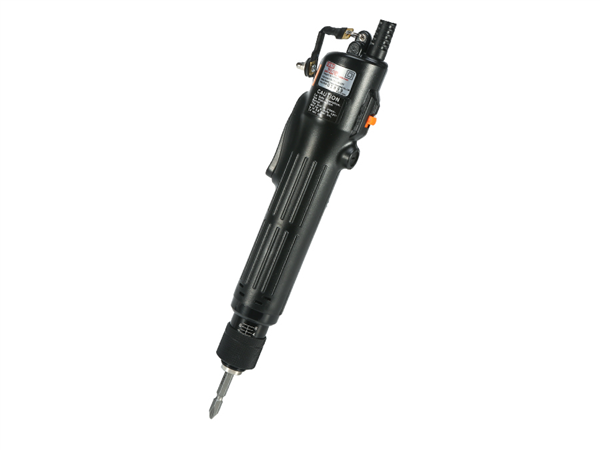

DC-TYPE (Non Shut-Off) Screwdriver Series with Tool Box

Model Input Voltage Torque (N·m) Power Consumption Speed (r.p.m) Screw Size (mm) Starting Method Power Controller Bit Type ESD CE RoHS
BSD-101L DC 36V 0.05–1.5 36W 1100 1.6–4.0 — BSD-36P D
BSD-101LX DC 36V 0.05–1.5 36W 1100 1.6–4.0 — BSD-36P D
BSD-102LQX DC 36V 0.43–5.5 45W 1000 2.6–5.6 Trigger BSD-36P-60WF B
BSD-102LFX DC 36V 0.43–5.5 45W 1000 2.6–5.6 Start BSD-36P-60WF B
BSD-1000L DC 32V 0.5–0.69 48W 1000 2.6–4.0 — BSD-32P C, D
BSD-1200L DC 32V 1.47–4.41 48W 1000 2.0–4.0 — BSD-32P C, D

DC-TYPE SHUT OFF SCREWDRIVER

Model Input Voltage Torque (N·m) Power Consumption Speed (r.p.m) Screw Size (mm) Starting Method Power Controller Bit Type ESD CE RoHS
(C) Models — Only Use with BSP-C32HL Counter
BSD-(C)3000L DC 24 or 32 V 0.03–0.34 25W 1000 / 700 1.0–2.3 — BSP-32HL-40W (BSP-C32HL) B, C
BSD-(C)3300L DC 24 or 32 V 0.1–0.98 25W 1000 / 700 1.4–2.6 Trigger / Start BSP-32HL-40W (BSP-C32HL) B, C
BSD-(C)3800L DC 24 or 32 V 0.15–1.47 25W 1000 / 700 1.6–3.0 Trigger / Start BSP-32HL-60W C
BSD-(C)4200L DC 24 or 32 V 0.19–1.96 25W 1000 / 700 1.6–3.0 — BSP-32HL-60W C
BSD-(C)6200L DC 24 or 32 V 0.1–1.8 48W 1000 / 700 1.6–3.0 — BSP-32HL-60W (BSP-C32HL) A, B
BSD-(C)6600L DC 24 or 32 V 0.29–1.57 48W 1000 / 700 2.3–3.5 — BSP-32HL-60W (BSP-C32HL) C, D
(V) Models — Vacuum Type Screwdriver
BSD-(C)8200L/PF·PF/E DC 32 V 0.49–1.76 48W 1000 / 700 2.0–4.0 Trigger / Push Start BSP-32HL-300W A, B
BSD-(C)8800L/PF·PF/E DC 32 V 0.78–3.9 50W 1000 / 700 2.6–4.5 Trigger / Push Start BSP-32HL-300W A, B
BSD-(C)9300L/PF·PF/E DC 32 V 0.49–1.96 55W 1000 / 700 2.0–3.5 — BSP-32HL-300W A, B
BSD-(C)9400L/PF·PF/E DC 24 or 32 V 0.98–2.94 55W 1000 / 700 2.6–4.5 — BSP-32HL-300W A, B
BSD-(C)9500L/PF·PF/E DC 24 or 32 V 1.37–3.92 55W 1000 / 700 3.0–5.0 — BSP-32HL-300W A, B
BSD-8820L/PF·PF/K DC 32 V 0.39–1.96 55W 1000 / 700 2.0–3.5 — BSP-32HL-300W A, B
BSD-9450L/PF·PF/K DC 32 V 1.47–4.41 55W 700 / 500 4.0–6.0 — BSP-32HL-300W A, B
BSD Brush Series / Counter for Brush Type Screwdriver

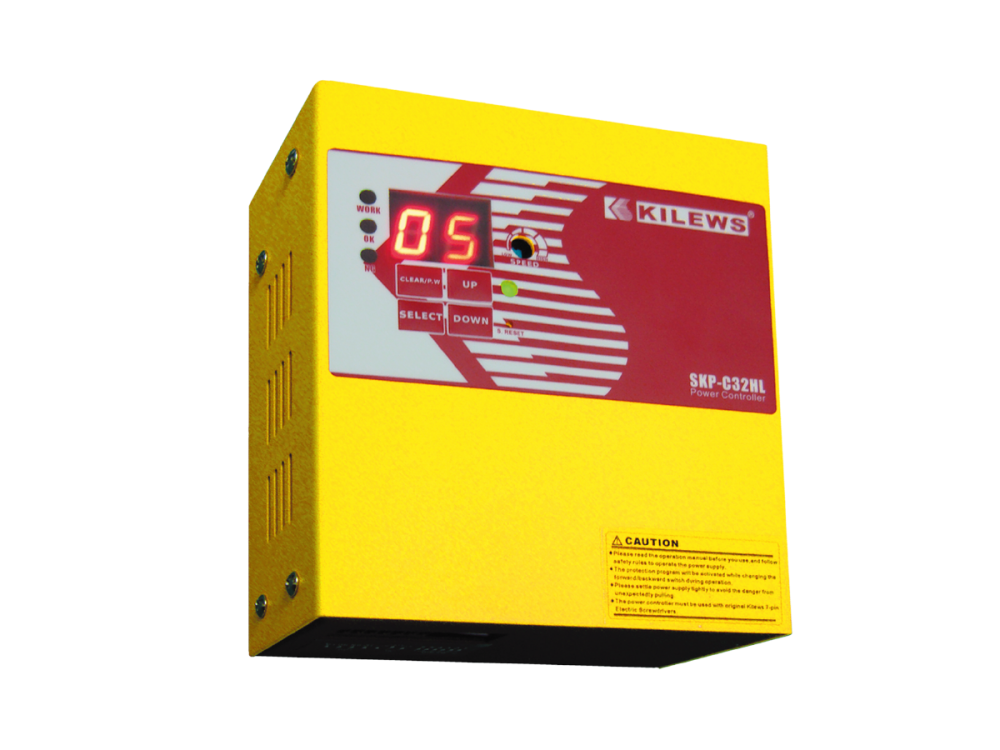

Counter for Brush Type Screwdriver

Counter for Brush Type Screwdriver - Product Gallery

Click on any product to view details and enquire

Counter for Brush Type Screwdriver
View Details

Counter for Brush Type Screwdriver

Compatible with SKD-C2000, SKD-C5000, SKD-C7000, SKD-C8000 series

Specification Details
Input Voltage AC 110 V ~ 240 V 50/60 Hz
Output Voltage DC 32 V / 24 V 3 A / 1.8 A
Power Consumption 60 W
Count Range 1 ~ 99
Count Method Count-up / Count-down
Work with Sensor ON / OFF
GATE Sensor ON (2 Sensor) / OFF (1 Sensor)
Slow-Start Time Adjustable 0 ~ 9.9 seconds
Slow-Start Speed Adjustable 60 % ~ 100 %
Running Time Limit – LO 0.01 ~ 9.99 seconds
Running Time Limit – HI 0.1 ~ 9.9 seconds
OK / NG Reminder Mode ON / OF / FF / EF (with LED and buzzer)
Auto ZERO ON / OFF
External Inputs 感應 / 復歸 (Sensing / Reset)
External Outputs OK / NG / OK All
Screwdriver Control HI / LO : Slow-Start
External Dimensions (mm) 150 × 48 × 130 mm
Weight (kg) 0.9 kg
Applicable Models SKD-C2000 series, SKD-C5000 series, SKD-C7000 series, SKD-C8000 series
BSD Brushless Series / BSD Brushless Screwdriver

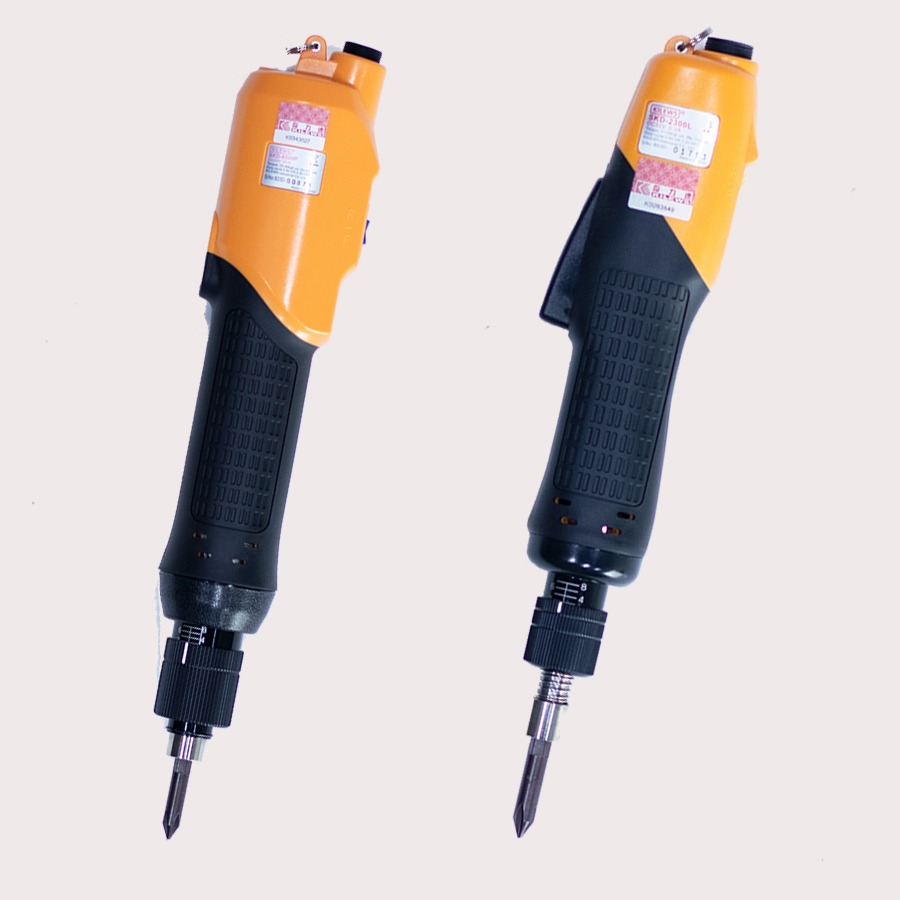

BSD Brushless Screwdriver

Model Input Voltage (DC) Torque (N·m) Power Consumption (W) Repeatable Torque Accuracy (%) Torque Adjustment Unloaded Rotation Speed (r.p.m) Screw Size (mm) Weight (g) Length (mm) Model of Torque Fixing Ring Power Controller With Screw Counter Model of Suspension Rack Bit Type
BSD-BN2003L DC 24V 0.3–2.0 30W ±5% 0.3–2.0 1500 1.6–2.5 380 180 — BSD-24P — — A, B
BSD-BN2007L DC 24V 0.7–2.0 30W ±5% 0.7–2.0 1200 2.0–3.0 390 185 — BSD-24P — — A, B
BSD-BN2010L DC 24V 1.0–2.0 30W ±5% 1.0–2.0 1000 2.0–3.0 400 190 — BSD-24P — — A, B
BSD-BN5012L DC 24V 1.2–5.0 40W ±5% 1.2–5.0 800 2.0–3.5 420 200 — BSD-24P — — A, B
BSD-BN5012P DC 24V 1.2–5.0 40W ±5% 1.2–5.0 600 2.0–3.5 430 205 — BSD-24P — — A, B
BSD-BN5019L/P DC 24V 1.9–5.0 45W ±5% 1.9–5.0 800 / 600 2.0–3.5 440 210 — BSD-24P — — A, B
BSD-BN5012LF DC 24V 1.2–5.0 40W ±5% 1.2–5.0 800 2.0–3.5 425 202 — BSD-24P — — A, B
BSD-BN5012PF DC 24V 1.2–5.0 40W ±5% 1.2–5.0 600 2.0–3.5 435 207 — BSD-24P — — A, B
BSD-BN7030L/P DC 24V 3.0–7.0 50W ±5% 3.0–7.0 600 / 400 2.5–4.0 460 220 — BSD-24P — — A, B
BSD-BN7022L/PF/P DC 24V 2.2–7.0 50W ±5% 2.2–7.0 800 / 600 / 400 2.5–4.0 470 225 — BSD-24P — — A, B
BSD Brushless Series / Screw Counter for Brushless Screwdrivers

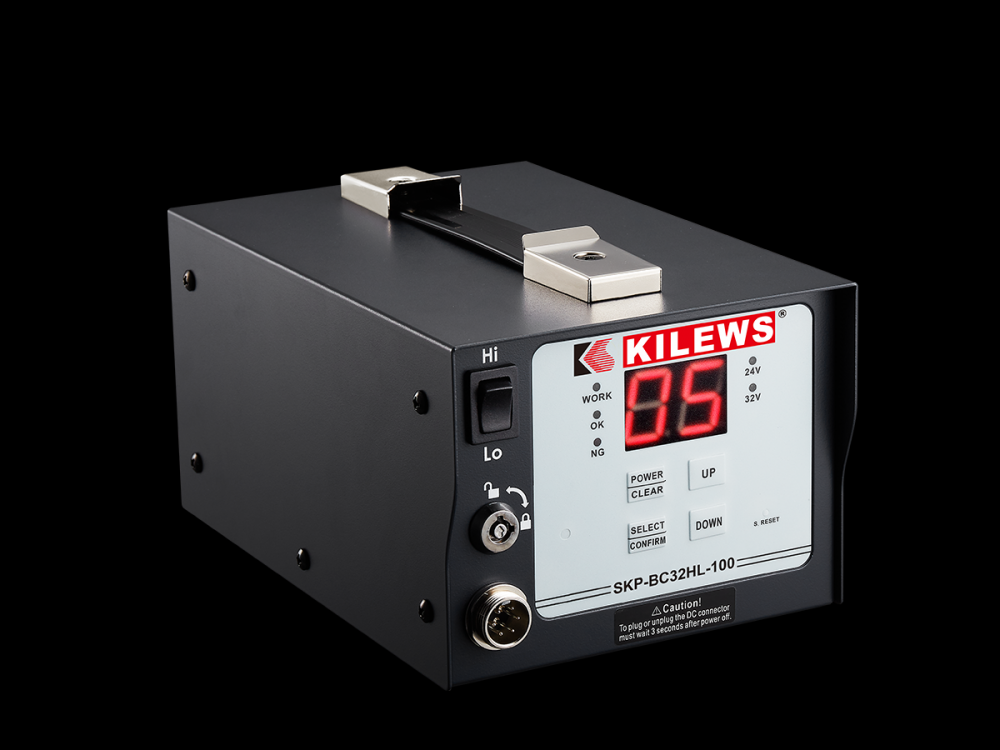

SKP-BC32HL-100 Screw Counter (For Brushless Screwdrivers)

SKP-BC32HL-100 - Product Gallery

Click on any product to view details and enquire

SKP-BC32HL-100 Screw Counter
View Details

SKP-BC32HL-100

Screw Counter compatible with SKD-BN200, SKD-BN500, SKD-BN7000 series

Specification Details
Input Voltage AC 100 ~ 240 V, 50/60 Hz
Output Voltage DC 32 V / 24 V, 1.875 A
Power Consumption 60 W
Count Range 1 ~ 99
Count Method Count-up / Count-down
Work with Sensor ON / OFF
GATE Sensor ON (2 Sensors) / OFF (1 Sensor)
Slow-Start Time Adjustable 0 ~ 9.9 seconds
Slow-Start Speed Adjustable L0: 100%, 35% ~ 85% (L0 ~ L9 Rated Speed)
Running Time Limit – LO 0.00 ~ 9.99 seconds
Running Time Limit – HI 0.0 ~ 9.9 seconds
Reminder Mode ON / OF / FF / EF (with LED and buzzer)
Auto ZERO ON / OFF
External Inputs Forward / Reverse / Disable / Confirm / Sensor / Clear
External Outputs OK / NG / OK ALL
Screwdriver Control HI / LO : Slow-Start
External Dimensions (mm) 200 × 130 × 100 mm
Weight (kg) 1.57 kg
Applicable Models SKD-BN200 series, SKD-BN500 series, SKD-BN7000 series
KILEWS Products / High Torque Series

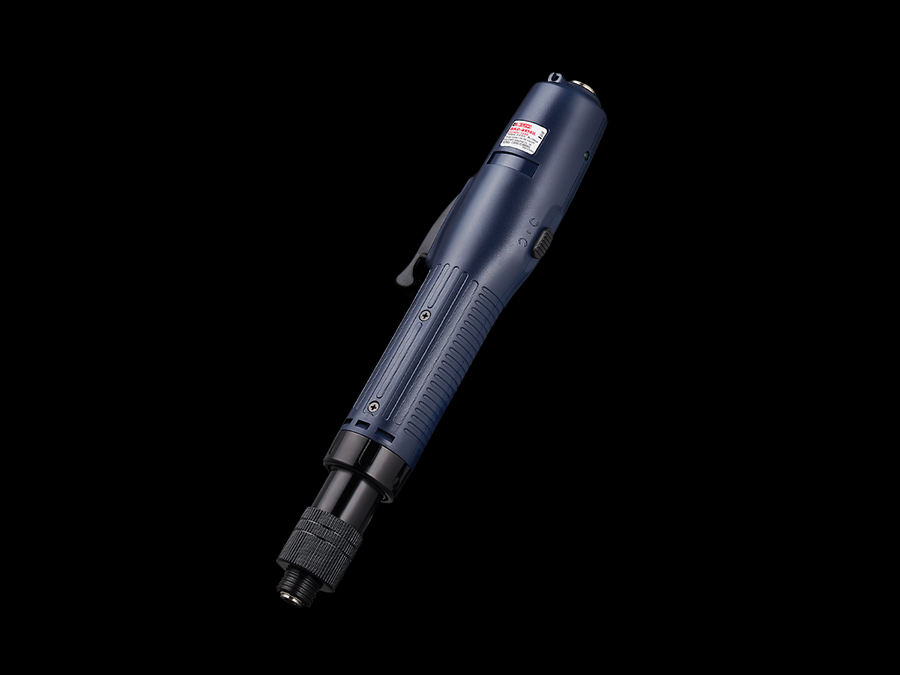

Straight Type Push/Trigger

Model Input Voltage Power Consumption Torque (N·m)
Hard Joint		 Torque (N·m)
Soft Joint		 Repeatable Torque Accuracy (%) Torque Adjustment Free Speed (r.p.m)
HI		 Free Speed (r.p.m)
LO		 Screw Size Dia (mm)
Machine Screw		 Screw Size Dia (mm)
Tapping Screw		 Weight (kg) Length (mm) ESD (Anti-Static) CE CCC RoHS Auxiliary Arm Handle Grip Power Controller Bit Type
SKD-HTS600L/P DC 40V 100W 2 – 6 2 – 4.8 ±5% Stepless 1200 — 4.0 – 5.0 ≤4 1.25 315 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35mm (No.3)
SKD-HTS900L/P DC 40V 120W 3 – 9 3 – 7.2 ±5% Stepless 900 — 5.0 – 6.0 ≤4.5 1.25 315 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35mm (No.3)
SKD-HTS1200L/P DC 40V 120W 4 – 12 4 – 9.6 ±5% Stepless 600 — ≤8 ≤6 1.25 315 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35mm (No.3)
SKD-HTS1200LF/PF DC 40V 150W 4 – 12 4 – 9.6 ±5% Stepless 880 — ≤8 ≤6 1.25 315 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35mm (No.3)
SKD-HTS1800L/P DC 40V 150W 6 – 18 6 – 14.4 ±5% Stepless 370 — ≤10 ≤8 1.25 315 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35mm (No.3)
SKD-HTS1800LF/PF DC 40V 150W 6 – 18 6 – 14.4 ±5% Stepless 600 — ≤10 ≤8 1.25 315 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35mm (No.3)
SKD-HTS2500L/P DC 40V 150W 8 – 25 8 – 20 ±5% Stepless 370 — ≤10 ≤8 1.25 315 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35mm (No.3)
SKD-HTS2500LF/PF DC 40 V 150 W 8 – 25 8 – 20 ±5 % Stepless 550 ≤ 10 ≤ 8 2.2 380 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3) / 3⁄8 sq
SKD-HTS3500L/P DC 40 V 150 W 12 – 35 12 – 28 ±5 % Stepless 350 ≤ 12 ≤ 10 2.2 380 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3) / 3⁄8 sq
SKD-HTS5000L/P DC 40 V 150 W 20 – 50 20 – 40 ±5 % Stepless 200 ≤ 14 ≤ 12 2.2 380 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3) / 3⁄8 sq
KILEWS Products / Angled Type Push/Trigger

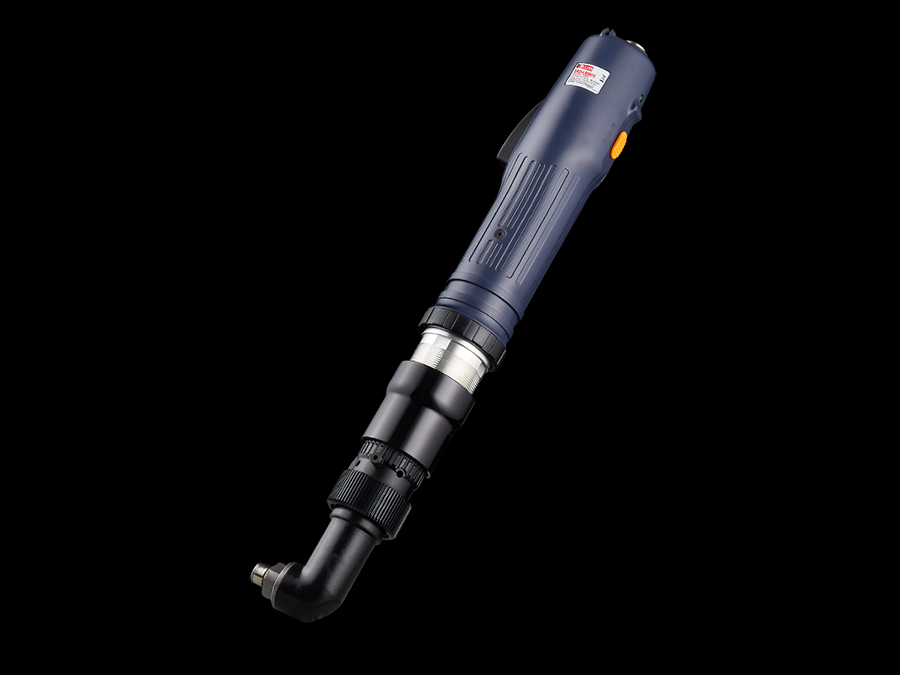

Angled Type

Model Input Voltage Power Consumption Torque (N·m)
Hard Joint		 Torque (N·m)
Soft Joint		 Repeatable Torque Accuracy (%) Torque Adjustment Free Speed (r.p.m)
HI		 Free Speed (r.p.m)
LO		 Screw Size Dia (mm)
Machine Screw		 Screw Size Dia (mm)
Tapping Screw		 Weight (kg) Length (mm) ESD (Anti-Static) CE CCC RoHS Auxiliary Arm Handle Grip Power Controller Bit Type
SKD-HTA500 DC 40 V 100 W 2 – 5 2 – 4 ±5 % Stepless 1200 — ≤ 5 ≤ 4 2.2 380 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3)
SKD-HTA750 DC 40 V 120 W 3 – 7.5 3 – 6 ±5 % Stepless 900 — ≤ 6 ≤ 4.5 2.2 380 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3)
SKD-HTA1000 DC 40 V 120 W 6 – 10 6 – 8 ±5 % Stepless 600 — ≤ 8 ≤ 6 2.5 393 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3)
SKD-HTA1000F DC 40 V 150 W 6 – 10 6 – 8 ±5 % Stepless 900 — ≤ 8 ≤ 6 2.5 393 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3)
SKD-HTA1500 / HTA1500F DC 40 V 150 W 8 – 15 8 – 12 ±5 % Stepless 880 — ≤ 10 ≤ 8 2.5 393 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3)
SKD-HTA2200 DC 40 V 150 W 12 – 22 12 – 17.6 ±5 % Stepless 370 — ≤ 10 ≤ 8 2.5 393 ✔ ✔ ✔ ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3)

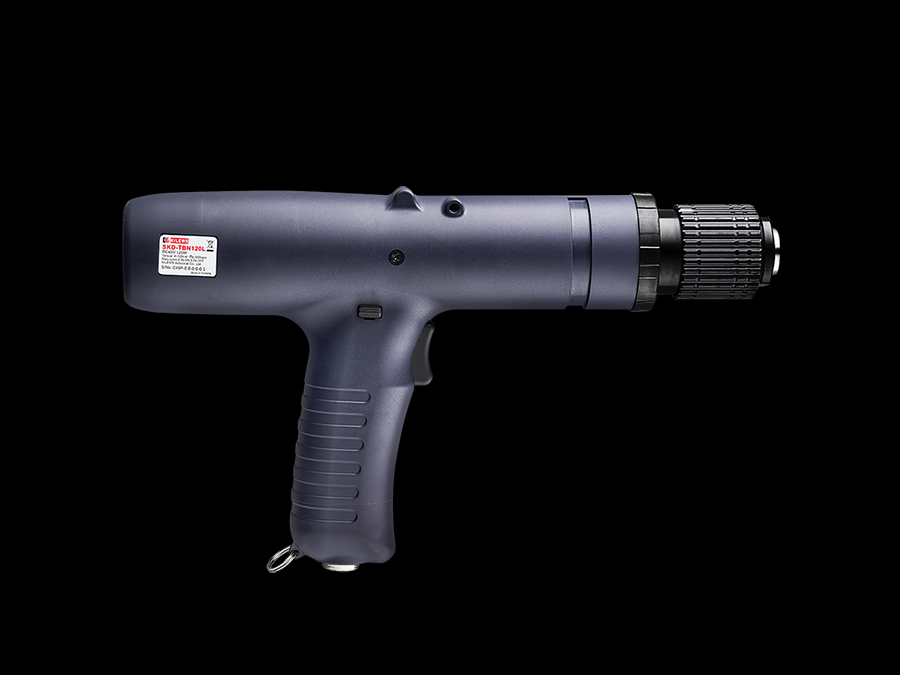

KILEWS Products / Pistol Type

Pistol Type

Model Input Voltage Power Consumption Torque (N·m)
Hard Joint		 Torque (N·m)
Soft Joint		 Repeatable Torque Accuracy (%) Torque Adjustment Free Speed (r.p.m)
HI		 Free Speed (r.p.m)
LO		 Screw Size Dia (mm)
Machine Screw		 Screw Size Dia (mm)
Tapping Screw		 Weight (kg) Length (mm) ESD (Anti-Static) CE RoHS Auxiliary Arm Handle Grip Power Controller Bit Type
SKD-HTP200 50 W 0.3 – 2.0 0.3 – 1.6 ±3 % Stepless 1200 — 2.3 – 3.5 2.3 – 3.0 0.7 185 × 150 ✔ (black housing) ✔ — — — SKP-40B-HL(N) Type A / B (Φ6.35 mm Hex)
SKD-HTP250LF 50 W 0.8 – 2.5 0.8 – 2.0 ±3 % Stepless 2000 — 2.6 – 4.0 2.6 – 3.5 0.7 185 × 150 ✔ (black housing) ✔ — — — SKP-40B-HL(N) Type A / B (Φ6.35 mm Hex)
SKD-HTP300 DC 40 V 50 W 0.8 – 3.0 0.8 – 2.4 ±3 % Stepless 1200 — 2.6 – 4.0 2.6 – 3.5 0.7 185 × 150 ✔ ✔ ✔ — — SKP-40B-HL(N) Type A / B (Φ6.35 mm Hex)
SKD-HTP500 DC 40 V 50 W 2 – 5 2 – 4 ±5 % Stepless 700 — 4.0 – 5.0 ≤ 4 1.2 274 × 160 ✔ ✔ ✔ — — SKP-40B-HL-800(N) Type B (Φ6.35 mm Hex)
SKD-HTP600 DC 40 V 100 W 2 – 6 2 – 4.8 ±5 % Stepless 1000 — 4.0 – 5.0 ≤ 4 1.2 274 × 160 ✔ ✔ ✔ — — SKP-40B-HL-800(N) Type B (Φ6.35 mm Hex)
SKD-HTP900 DC 40 V 120 W 3 – 9 3 – 7.2 ±5 % Stepless 800 — 5.0 – 6.0 ≤ 4.5 1.2 274 × 160 ✔ ✔ ✔ — — SKP-40B-HL-800(N) Type B (Φ6.35 mm Hex)
SKD-HTP1200 DC 40 V 120 W 4 – 12 4 – 9.6 ±5 % Stepless 550 — ≤ 8 ≤ 6 1.2 274 × 160 ✔ ✔ ✔ — — SKP-40B-HL-800(N) Type B (Φ6.35 mm Hex)
SKD-HTP1800 DC 40 V 200 W 6 – 18 6 – 14.4 ±5 % Stepless 350 — ≤ 10 ≤ 8 1.2 274 × 160 ✔ ✔ ✔ — — SKP-40B-HL-800(N) Type B / W (Φ6.35 mm Hex / 3⁄8" sq)

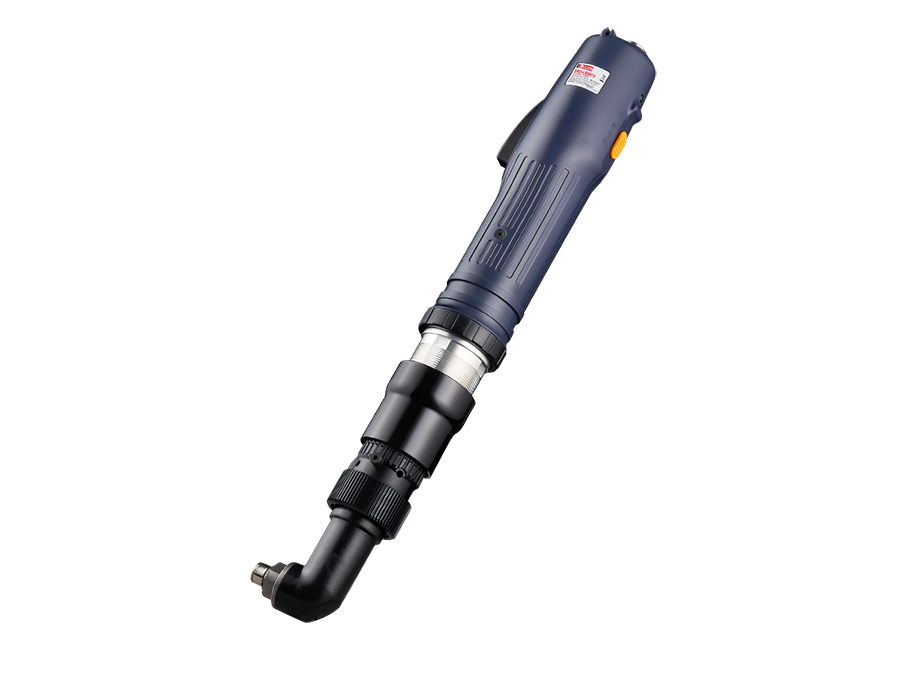

KILEWS Products / Power Torque

Power Torque

Model Input Voltage Power Consumption Torque (kgf·cm) Torque (Lbf·in) Torque (N·m)
Hard Joint		 Torque (N·m)
Soft Joint		 Repeatable Torque Accuracy (%) Torque Adjustment Free Speed (r.p.m) Screw Size Dia (mm)
Machine Screw		 Screw Size Dia (mm)
Tapping Screw		 Weight (g) Length (mm) ESD (Anti-Static) CE CCC RoHS Power Controller Bit Type
SKD-HT8030L DC 40 V 90 W 10 – 30 8.67 – 26.02 0.98 – 2.94 0.98 – 2.35 ±3 % Stepless 1000 2.6 – 4.0 2.6 – 3.5 800 278 ✔ (black housing) ✔ ✔ ✔ SKP-40B-HL(N) Type A / B (Φ6.35 mm Hex)
SKD-HT8030LF/PF DC 40 V 90 W 10 – 30 8.67 – 26.02 0.98 – 2.94 0.98 – 2.35 ±3 % Stepless 2000 2.6 – 4.0 2.6 – 3.5 800 278 ✔ (black housing) ✔ ✔ ✔ SKP-40B-HL(N) Type A / B (Φ6.35 mm Hex)
SKD-HT8050P DC 40 V 120 W 20 – 50 17.35 – 43.37 1.96 – 4.90 1.96 – 3.92 ±3 % Stepless 1000 4.0 – 5.0 ≤ 4 800 278 ✔ (black housing) ✔ ✔ ✔ SKP-40B-HL(N) Type B (Φ6.35 mm Hex)
SKD-HT9600L/P DC 40 V 150 W — — 2 – 6 2 – 4.8 ±5 % Stepless 1000 4.0 – 5.0 ≤ 4 1030 306 ✔ (black housing) ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3)
SKD-HT9600LF/PF DC 40 V 150 W — — 2 – 6 2 – 4.8 ±5 % Stepless 2000 4.0 – 5.0 ≤ 4 1030 306 ✔ (black housing) ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3)
SKD-HT9900L/P DC 40 V 150 W — — 3 – 9 3 – 7.2 ±5 % Stepless 1000 ≤ 6 ≤ 5 1030 306 ✔ (black housing) ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3)
SKD-HT9120L/P DC 40 V 150 W — — 6 – 12 6 – 9.6 ±5 % Stepless 880 ≤ 8 ≤ 6 1030 306 ✔ (black housing) ✔ ✔ ✔ SKP-40B-HL-800(N) HEX 6.35 mm (No.3)
KILEWS Products / SKP-BC40HL-800 Screw Counter

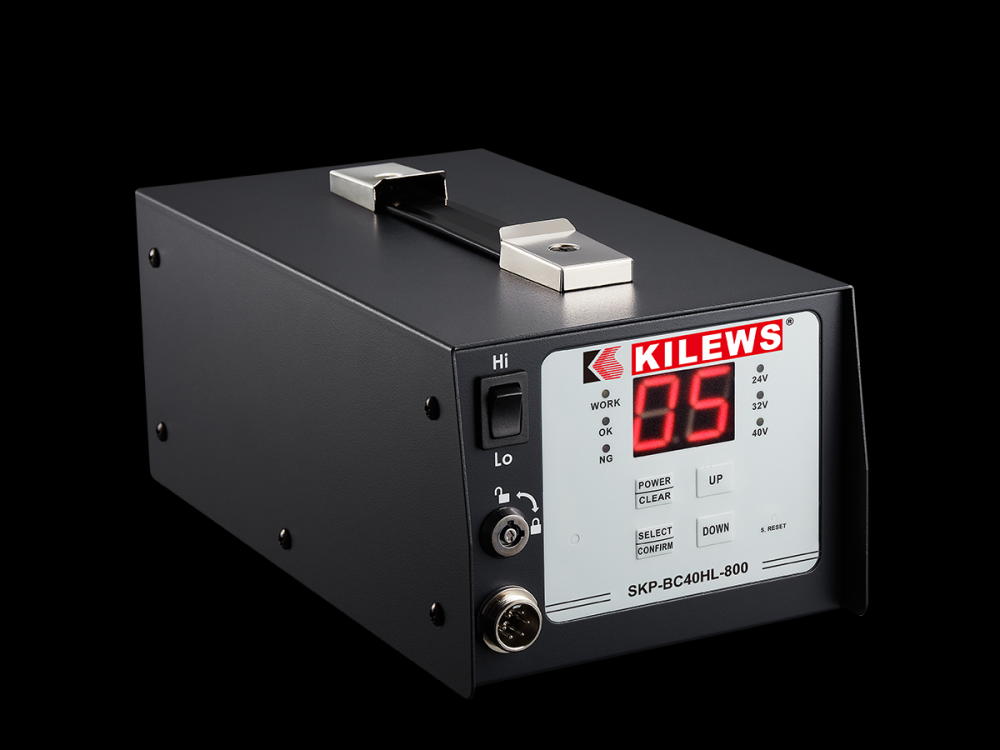

SKP-BC40HL-800 Screw Counter (For Brushless Screwdrivers)

SKP-BC40HL-800 - Product Gallery

Click on any product to view details and enquire

SKP-BC40HL-800 Screw Counter
View Details

SKP-BC40HL-800

High-power screw counter for brushless screwdrivers - 360W output

Specification Details
Input Voltage AC110 V / 50 Hz, 230 V / 60 Hz
Output Voltage DC 40 V / 32 V / 24 V 9 A
Power Consumption 360 W
Count Range 1 – 99
Count Method Count-up / Count-down
Work with Sensor ON / OFF
GATE Sensor ON (2 Sensors) / OFF (1 Sensor)
Slow-start Time Adjustable 0 – 9.9 seconds
Slow-start Speed Adjustable L0 : 100 % , 30 % ~ 90 % L1 ~ L9 Rated Speed
Running Time Limit – LO 0.00 – 9.99 seconds
Running Time Limit – HI 0.0 – 9.9 seconds
Reminder Mode ON / OF / FF / EF (with LED and buzzer)
Auto ZERO ON / OFF
External Inputs Forward / Reverse / Disable / Confirm / Sensor / Clear
External Outputs OK / NG / OK ALL
Screwdriver Control HI / LO ; Slow-Start
External Dimensions (mm) 247 × 130 × 100 mm
Weight (kg) 2.4 kg
Applicable Models SKD-BN200 series / SKD-BN500 series / SKD-BN800 series / SKD-BK900 series / SKD-RBK series / SKD-LRBK series / SKD-TBN series / SKD-TBK30LF / 35LF / 50LF / 70L series
KILEWS Products / Smart Tools Series

Smart Tools Series

Series Model Torque (N·m) Free Speed (r.p.m) Screw Size Dia (mm)
SKD-ST2000 SKD-ST2003L 0.02 – 0.34 1000 1.0 – 2.3
SKD-ST2007L 0.05 – 0.9 1000 1.4 – 2.6
SKD-ST2010L/P 0.19 – 1.47 1000 2.0 – 4.0
SKD-ST2012L/P 0.49 – 1.67 1000 1.6 – 3.0
SKD-ST5000 SKD-ST5012L/P 0.15 – 1.18 1000 1.6 – 3.0
SKD-ST5012LF/PF 0.15 – 1.18 2000 1.6 – 3.0
SKD-ST5019L/P 0.29 – 1.86 1000 2.0 – 4.0
SKD-ST8000 SKD-ST8030L/P 0.98 – 2.94 1000 2.6 – 4.0
SKD-ST8050P 1.96 – 4.90 1000 4.0 – 5.0
SKD-ST9000 SKD-ST9900L/P 3 – 9 1000 ≤ 6
SKD-ST9120L/P 6 – 12 880 ≤ 8
SKD-STS SKD-STS600L/P 2 – 6 1200 ≤ 5
SKD-STS900L/P 3 – 9 900 ≤ 6
SKD-STS1200L/P 4 – 12 600 ≤ 8
SKD-STS1800L/P 6 – 18 880 ≤ 10
SKD-STS1800LF/PF 6 – 18 600 ≤ 10
SKD-STS2500L/P 8 – 25 370 ≤ 10
SKD-STS2500LF/PF 8 – 25 550 ≤ 10
SKD-STS3500L/P 12 – 35 350 ≤ 12
SKD-STS5000L/P 20 – 50 200 ≤ 14
SKD-STA SKD-STA500 2 – 5 1200 ≤ 5
SKD-STA750 3 – 7.5 900 ≤ 6
SKD-STA1000 6 – 10 600 ≤ 8
SKD-STA1500L/F 8 – 15 880 ≤ 10
SKD-STA2200 12 – 22 370 ≤ 10
SKD-STP SKD-STP200 0.3 – 2.0 1200 2.3 – 3.5
SKD-STP250LF 0.8 – 2.5 2000 2.6 – 4.0
SKD-STP300 0.8 – 3.0 1200 2.6 – 4.0
SKD-STP500 2 – 5 700 4.0 – 5.0
SKD-STP600 2 – 6 1000 4.0 – 5.0
SKD-STP900 3 – 9 800 5.0 – 6.0
SKD-STP1200 4 – 12 550 ≤ 8
SKD-STP1800 6 – 18 350 ≤ 10
KILEWS Products / Smart Tools Series / KL-CTDS Smart Industrial Torque Display

KL-CTDS Smart Industrial Torque Display

Ready to Enhance Your Assembly Operations with KILEWS Smart Tools?

Contact our experts for personalized recommendations and competitive pricing on KILEWS intelligent screwdriver systems.

Get Quote
Need Smart Screwdrivers? Get Expert Advice! Call Now WhatsApp
